P120
Pellet Heater

Piazzetta Wood Pellets

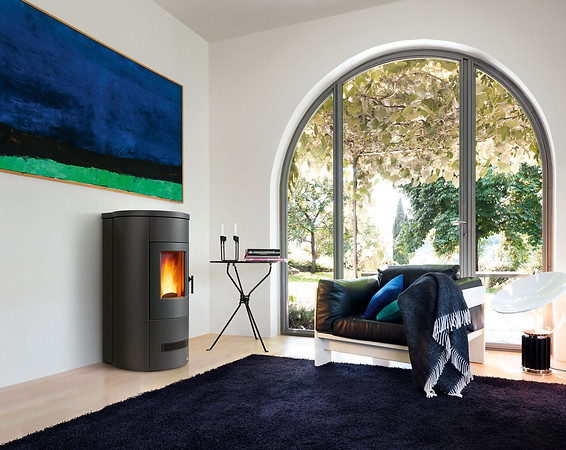

Pellet Stove model P120 with Steel cladding, for Wall - Corner installation. Energy Efficiency Class A+. Airtight firebox. Fitted with the Natural Mode function. Wi-Fi for App management supplied as a standard feature.



COLOURS

Piazzetta Bianco Antico Majolica
Bianco
Metallico

Piazzetta Grigio Cerato Majolica
Nero
Metallico
Rubino colour swatch.png
Rubino


GENERAL TECHNICAL CHARACTERISTICS

•Heating: Multifuoco System®, automatically controlled. Ductable
hot air
•Natural Mode: yes
•Power levels: 5
•Cladding / Top: steel / majolica and steel
•Front ventilation: fixed vent
•Humidifier: optional
•Remote control EASY with LCD display: optional
•Ambient probe for temperature control: as standard feature
•Control panel with digital controls: yes
•Module WiFi - Bluetooth for MyPiazzetta App: standard
•Timer-controlled thermostat with programming: 6 daily time frames
•Eco / Energy Saving function: yes / yes
•Glass cleaning: continuous air flow
•Cyclic brazier cleaning: yes
•Ash vacuum cleaner: as standard feature
•Installation: wall - corner
•Standard flue outlet position: LH rear
•Optional flue outlet:
•One-piece firebox: airtight in steel
•Firebox: cast iron
•Door / Handle: cast iron with self-cleaning ceramic glass resistant
up to 750°C / steel with Nero finish
•Air Combustion System Function: yes
•Pellet Quality System Function: yes
•Side ventilation:
•Pellet level indicator: yes

TECHNICAL DRAWING

P120 tech drawings.png

TECHNICAL DATA

•Rated thermal power (min - max) kW 3,4 - 8,5
•Efficiency (min - max) % 89,4 - 90,6
•Energy efficiency class A+
•Rated consumption (min - max) kg/h 0,7 - 1,9
•Tank capacity kg 18
•Weight kg 105
•Standard flue outlet Ø cm 8
•Model P120​​

BROCHURE

For more information on the Piazzetta P120 Pellet Heater.

Download our full colour brochure
